Class 2 Transformers (5VA to 75VA Series UL &c UL Llsted)
.png)
Share：
Main Features
- 50/60Hz
- RoHS Compliant
- The transformers employ a Class 130(B) Insulation System
- Class 2 and Class 3 Transformers, , UL5085
- UL & UL Listings
- Conformite Europende, EN61558-1,EN61558-2-6
INFORMATION:
| TYPE | VA Rating | Primary VAC | Secondary VAC |
|

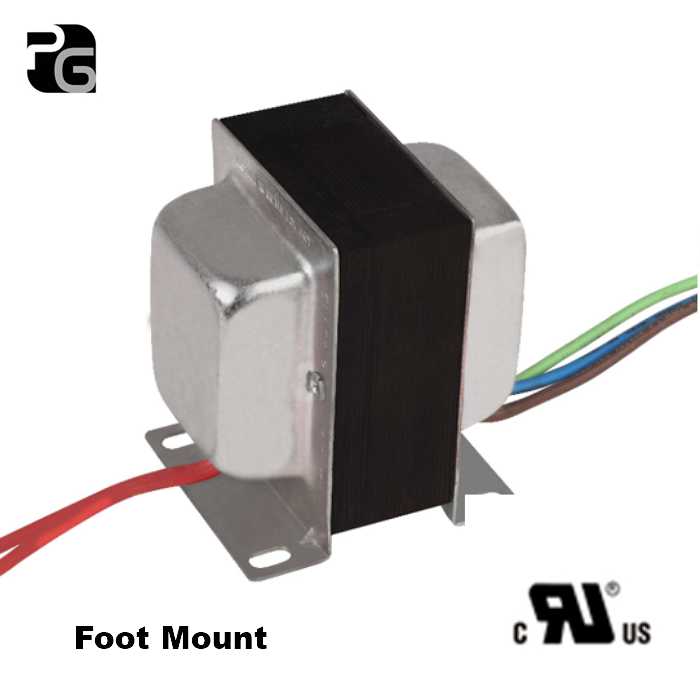

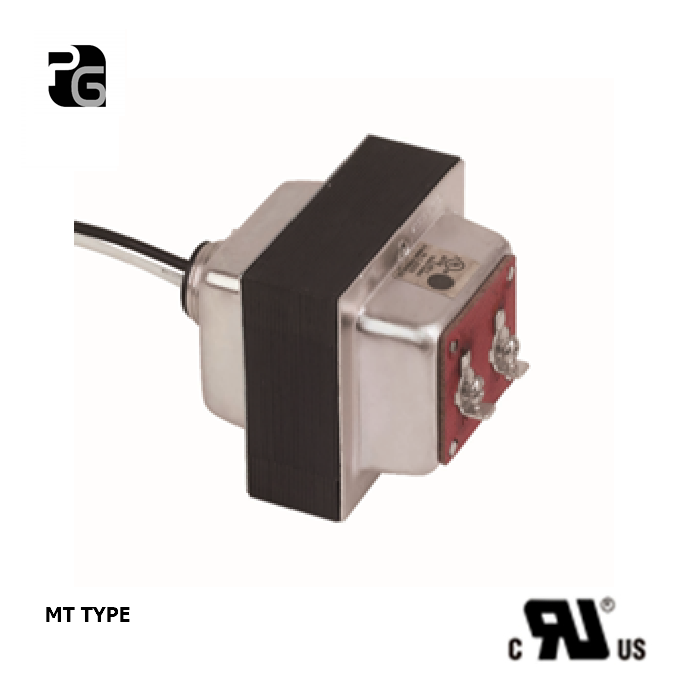

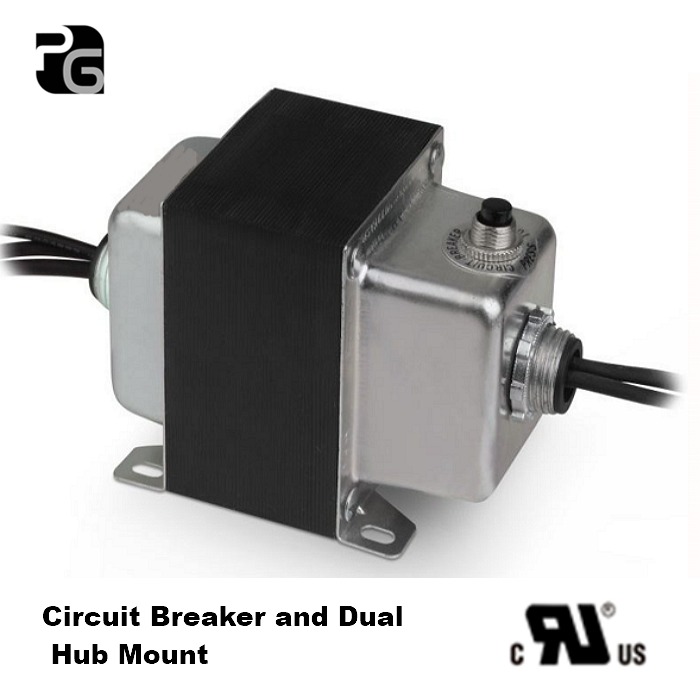

MT Mount MW Mount Foot Mount Plate Mount Single Hub Mount Dual Hub Mount MODEL |
5VA |
120 |
10V |
|
5VA |
120/208/240 |
12V 24V 12/24V |
|
| 20VA | 120/208/240/277 |
24V
|
|
|
10VA 15VA 20VA 30VA 40VA
|
120 |
16V |
|
|
20VA 30VA |
120 | 8/16/24V | |
|
40VA |
24 |
24V 12/24V |
|
|
5VA 10VA 20VA 40VA 60VA |
120 | 24V | |
|
20VA 60VA |
240 | 24V | |
|
20VA 40VA 50VA 75VA |
277 | 24V | |
|
20VA 40VA 60VA |
208/240 | 24V | |
|
10VA 20VA 40VA 60VA |
120/208/240 | 24V | |
|
20VA |
120 |
24V 12/24V |
|
| 208 | |||
| 240 | |||
| 120/208 | |||
| 120/240 | |||
| 208/240 | |||
| 208/277 | |||
| 120/208/240 | |||
|
25VA
|
120 |
24V 12/24V |
|
| 208 | |||
| 240 | |||
| 277 | |||
| 120/208 | |||
| 120/240 | |||
| 120/277 | |||
| 208/240 | |||
| 208/277 | |||
| 240/277 | |||
| 120/208/240 | |||
| 120/208/277 | |||
| 120/240/277 | |||
| 208/240/277 | |||
| 120/208/240/277 | |||
|
40VA 50VA |
120 |
12V 24V 2.5/12V 2.5/24V 12/24V 2.5/12/24V |
|
| 208 | |||
| 240 | |||
| 120/208 | |||
| 120/240 | |||
| 208/240 | |||
| 120/208/240 |
