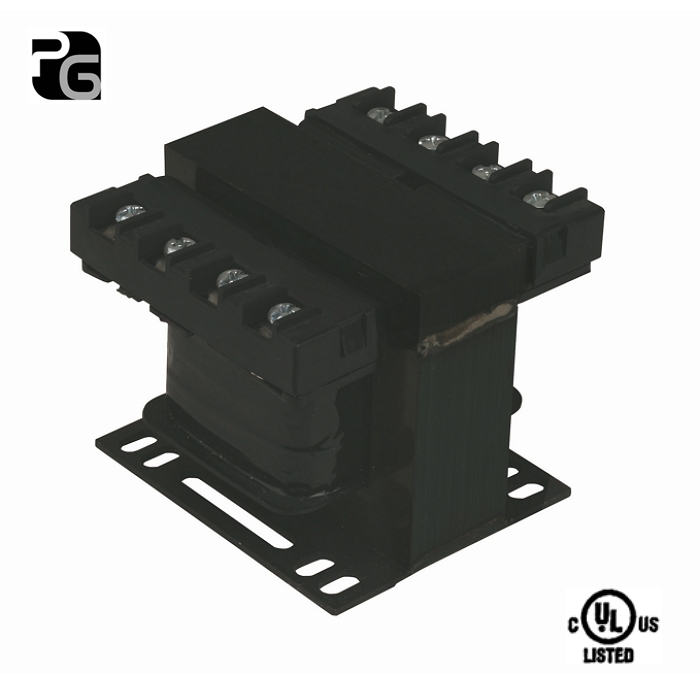

Industrial Controls Transformers
Share：
Features
- 50/60Hz
- RoHS Compliant
- The transformers employ a Class 130(B) Insulation System
- General Purpose Transformers, UL5085
- Conformite Europende, EN61558-1,EN61558-2-6
- Precise spacing between interleaved windings for maximized voltage regulation
- Oversized copper windings contribute to low temperature rise
- Mounting plate adapts to various mounting dimensions
- Molded terminal blocks allow easy ring terminal installation
- Optional Secondary Fuse Kits available
INFORMATION:
| TYPE | VA Rating | Input Voltage Vac | Output Voltage Vac |
|
50~150VA Series Spe. MODEL |
50VA 75VA 100VA 150VA |
120/240 | 24 |
| 240/480 | 24 | ||
| 240/480 | 120 | ||
| 120/240 | 24 | ||
| 240/480 | 24 | ||
| 240/480 | 120 | ||
| 120/240 | 24 | ||
| 240/480 | 24 | ||
| 240/480 | 120 | ||
| 120/240 | 24 | ||
| 240/480 | 24 | ||
| 240/480 | 120 | ||
|
50~750VA Series Spe. MODEL |
50VA 75VA 100VA 150VA 200V 250V 300V 350V 500V |
120 | 12/24 |
| 208 | 24 | ||
| 208 | 120 | ||
| 277 | 120 | ||
| 277 | 24 | ||
| 480 | 208 | ||
| 120/240 | 24 | ||
| 208/230/460 | 115 | ||
| 240/480 | 24 | ||
| 240/480 | 120 | ||
|
750VA Series Spe. MODEL |
750VA | 240/480 | 120 |
|
1000VA Series Spe. MODEL |
1000VA | 240/480/600 | 120 |
